90w SCULPFUN S9 Laser

favorite_border

هذا المنتج لم يعد متوفر في متجرنا

90w SCULPFUN S9 Laser

policy سياسة التوصيل policy سياسة الإلغاء

تفاصيل المنتج

رقم المنتج

Specifications:

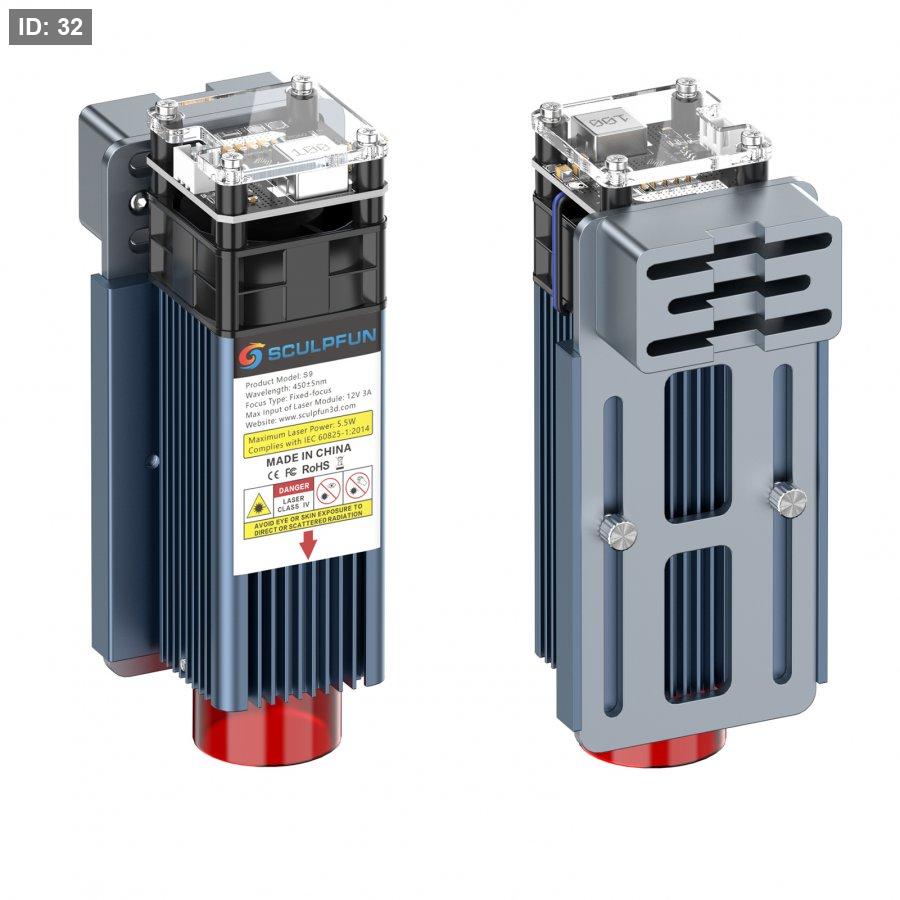

Model: SCULPFUN S9 Laser Module

Applicable Machines: laser engraving machines such as SCULPFUN, ATOMSTACK, ORTUR, ELEKSMAKER, or DIY 3D printers, CNC machine tools.

Engraving Materials: Paper, cardboard, plastic, white, PCB board, alumina, stainless steel, black metal, ceramic

Cutting Material: Thin board, acrylic board, cardboard, non-woven fabric, bamboo, some plastic board;

Laser Output Power: 5.5-6W (light energy)

Laser Wave Length 455±5nm

Laser Type and Fixed Focus Method: fixed focus laser, fixed focus through 20mm measuring column

Laser Protective Cover: The ring-shaped violet filter cover protects the user's eyes and prevents animals, etc. from contacting the laser spot.

Laser Shell Material: Aluminum alloy

Packing Size: 11*12*18cm

Package Weight: 0.5kg

Laser Circuit Board Parameters:

Circuit Board Size: 40*40mm

Circuit Board:12V/PWM modulation board

Input voltage: 12V

Max Input of laser module:12V 3A

Wire Rod:HY2.0, 3Pin terminal (3-core cable, A: PWM +, B: GND, C: VCC ).

Fan:12V 0.15A 4020 fan

Fan speed: 10000 rpm

Operating Temperature: -20 ℃ to 70 ℃
